United Solar Ovonic is the world leader in thin-film technologies. It's a company with years of experience in photovoltaics and is backed by a U.S. technology leader, Energy Conversion Devices, which holds 350 U.S. patents and 800 foreign patents. UNI-SOLAR technology has proven itself over decades under the most extreme conditions imaginable, including satellites, ocean buoys and military applications. They offer a proven product, a proven technology, from a proven company.
The foundation of all UNI-SOLAR products is their unique Triple Junction amorphous silicon solar cell. Amorphous construction allows lower costs, and a flexible substrata with DuPont Tefzel glazing creates a flexible, unbreakable product. Each cell is composed of three semiconductor junctions stacked on top of each other. Each layer is tuned for increased sensitivity to specific light frequencies. The bottom cell absorbs red light, the middle cell absorbs green light and the top cell absorbs blue light. This spectrum splitting capability delivers higher efficiency than any other amorphous silicon products.
Major Advantages of UNI-SOLAR Consumer Product Solutions
Up to 20% more energy per rated Watt over conventional solar panels
More energy per rated Watt
No glass construction
No back-ventilation necessary
Shadow tolerant
Exceptional durability
Extremely Lightweight
Unparalleled flexibility
Outperforms competition in high temperature conditions
Uni-Solar Product Brochure
124 Watt Solar Laminate (PVL-124)
Features
Virtually unbreakable due to no glass
Encapsulated in UV-stabilized polymers, includes EVA and the fluoropolymer ETFE
Easy peel & stick application with microbial inhibitor
Bypass diodes are connected across each cell
Shadow & high heat tolerant
High temperature and low light performance
Quick-connect terminals
Electrical Characteristics
Rated Power (Wp): |
124W |
Open Circuit Voltage (Voc): |
42V |
Maximum Power Voltage (Vpm): |
30V |
Short Circuit Current (Isc): |
5.1A |
Maximum Power Current (Ipm): |
4.1A |
Specifications subject to change without notice.

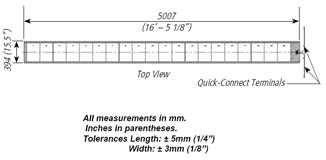

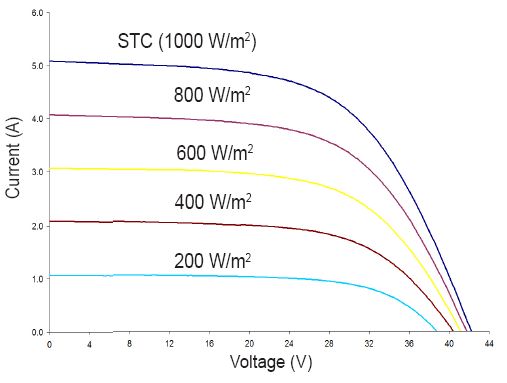

Power Curves and Schematic
Data Sheet
back to top
136 Watt Solar Laminate (PVL-136)
Features
Virtually unbreakable due to no glass
Encapsulated in UV-stabilized polymers, includes EVA and the fluoropolymer ETFE
Easy peel & stick application with microbial inhibitor
Bypass diodes are connected across each cell
Shadow and high heat tolerant
High temperature and low light performance
Quick-connect terminals
Electrical Characteristics
Rated Power (Wp): |
136 W |
Open Circuit Voltage (Voc): |
46.2V |
Maximum Power Voltage (Vpm): |
33.0V |
Short Circuit Current (Isc): |
5.1A |
Maximum Power Current (Ipm): |
4.1A |
Specifications subject to change without notice.

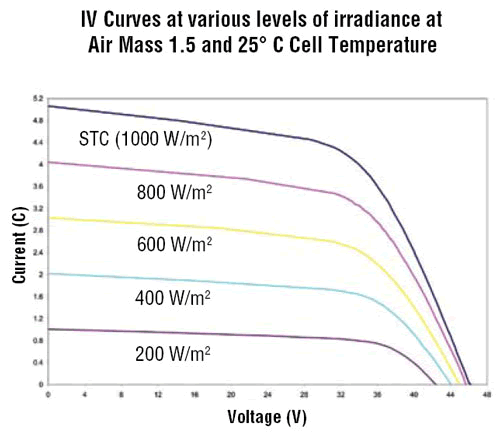

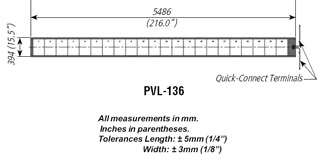

Power Curves and Schematic
Data Sheet
